Timer Job Feature is a task or function that can run base with scheduled on Munites, Hoursly, Daily, Weekly and Monthly / Timer Job Feature là tính năng có thể được thiết đặt để chay theo phút, giờ, ngày, tuần hay tháng.
First at all, we see what is Timer Job Feature look like on SharePoint 2010 / Trước hết chúng ta xem một tính năng Timer Job như thế nào trên SharePoint 2010.
Hourly
Weekly
Monthly
Data that added to Task SPList if we set timer job scheduled runs each 5 minutes / Dữ liệu đã được thêm vào SPList Task nếu chúng ta thiết lập cứ mỗi 5 phút chạy một lần
Now let start to make a Timer Job Feature / Giờ chúng ta bắt tay viết một tính năng chạy theo lịch trình
1. Start -> all Programs -> Microsoft Visual Studio 2010 -> Microsoft Visual Studio 2010
2. File -> New -> Project...
3. Visual C# -> SharePoint -> 2010 -> Empty SharePoint Project -> OK
4. Choose "Deploy as a farm solution" / Chọn thi công như một farm solution

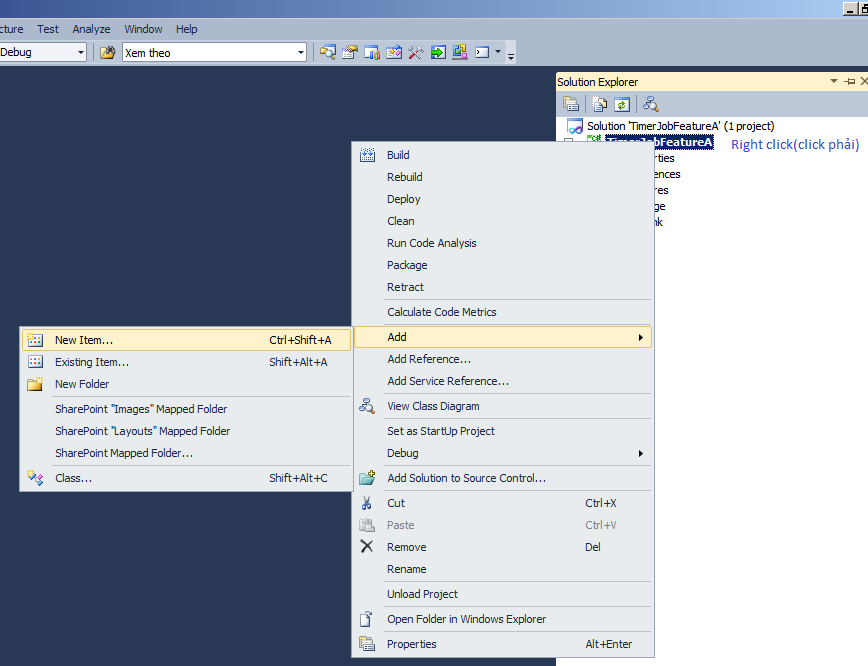

5. Add new timer job class by right click on project name -> Click "Add" -> Click "New Item..." / Thêm lớp mới cho tính năng chạy theo lịch trình
6. Visual C# -> Code -> Class -> TimerJobFeatureA.cs -> Add
7. TimerJobFeatureA.cs content / nội dung của lớp TimerJobFeatureA.cs
8. Full code of class TimerJobFeature.cs / Code của lớp TimerJobFeature.cs
using System;
using System.Collections.Generic;using System.Linq;
using System.Text;
using Microsoft.SharePoint.Administration;
using Microsoft.SharePoint;
namespace TimerJobFeatureA
{
class TimerJobFeatureA : Microsoft.SharePoint.Administration.SPJobDefinition
{
public TimerJobFeatureA()
: base()
{ }
public TimerJobFeatureA(string jobName, SPService service, SPServer server, SPJobLockType targetType)
: base(jobName, service, server, targetType)
{ }
public TimerJobFeatureA(string jobName, SPWebApplication webApplication, SPServer server, SPJobLockType targetType)
: base(jobName, webApplication, server, targetType)
{ }
public TimerJobFeatureA(string jobName, SPWebApplication webApplication)
: base(jobName, webApplication, null, SPJobLockType.ContentDatabase)
{
this.Title = "Timer Job Feature A";
}
/// <summary>
/// Implement code for our task job here
/// </summary>
/// <param name="targetInstanceId"></param>
public override void Execute(Guid targetInstanceId)
{
// get a reference to the current site collection's content database
SPWebApplication webApplication = this.Parent as SPWebApplication;
SPContentDatabase contentDb = webApplication.ContentDatabases[targetInstanceId];
if (contentDb == null)
return;
if (contentDb.Sites.Count <= 0)
return;
// get a reference to the "Task" list in the RootWeb of the first site collection in the content database
SPList Listjob = contentDb.Sites[0].RootWeb.Lists.TryGetList("Task");
if (Listjob == null)
return;
// create a new list Item, set the Title to the current day/time, and update the item
SPListItem newList = Listjob.Items.Add();
newList["Title"] = DateTime.Now.ToString();
newList.Update();
}
}
}
9. Right click Features -> Click Add Feature
10. Change feature name to TimerJobFeatureA / Thay đổi tên Feature1 thành TimerJobFeatureA
11. Feature name after changed / Tên sau khi được thay đổi

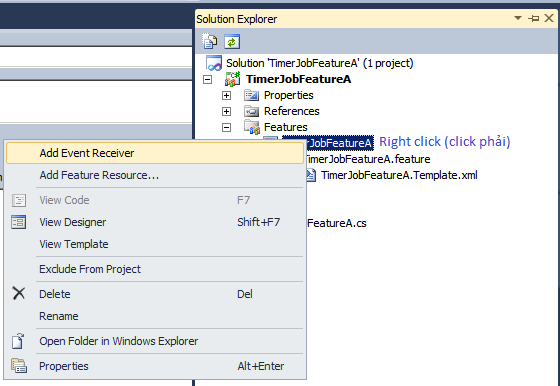

12. Add Event Receiver for feature
13. TimerJobFeatureA.EventReceiver.cs
14. Code of TimerJobFeatureA.EventReceiver.cs / code của lớp TimerJobFeatureA.EventReceiver.cs
using System;
using System.Runtime.InteropServices;using System.Security.Permissions;
using Microsoft.SharePoint;
using Microsoft.SharePoint.Security;
using Microsoft.SharePoint.Administration;
namespace TimerJobFeatureA
{
/// <summary>
/// This class handles events raised during feature activation, deactivation, installation, uninstallation, and upgrade.
/// </summary>
/// <remarks>
/// The GUID attached to this class may be used during packaging and should not be modified.
/// </remarks>
[Guid("7279cf5a-f7fd-4848-afe5-c4387da743f3")]
public class TimerJobFeatureAEventReceiver : SPFeatureReceiver
{
// Uncomment the method below to handle the event raised after a feature has been activated.
const string List_JOB_NAME = "TimerJobFeatureA";
public override void FeatureActivated(SPFeatureReceiverProperties properties)
{
SPSite site = properties.Feature.Parent as SPSite;
// make sure the job isn't already registered
foreach (SPJobDefinition job in site.WebApplication.JobDefinitions)
{
if (job.Name == List_JOB_NAME)
job.Delete();
}
// install the job
TimerJobFeatureA listLoggerJob = new TimerJobFeatureA(List_JOB_NAME, site.WebApplication);
SPMinuteSchedule schedule = new SPMinuteSchedule();
schedule.BeginSecond = 0;
schedule.EndSecond = 59;
schedule.Interval = 5;
listLoggerJob.Schedule = schedule;
listLoggerJob.Update();
}
// Uncomment the method below to handle the event raised before a feature is deactivated.
public override void FeatureDeactivating(SPFeatureReceiverProperties properties)
{
SPSite site = properties.Feature.Parent as SPSite;
// delete the job
foreach (SPJobDefinition job in site.WebApplication.JobDefinitions)
{
if (job.Name == List_JOB_NAME)
job.Delete();
}
}
}
}
15. Click View Designer of feature / click để xem thiết kế của feature
17.Click to show properties of project / Click icon properties để hiển thị tất cả thuộc tính của project
18. Type your sharepoint server location / chọn địa chỉ sharepoint server của bạn
19. Deploy the TimerJobFeatureA to your sharepoint server / Thi công tính năng lên sharepoint server
20. Deploy succeeded / Thi công đã thành công
21. Start -> all Programs -> Microsoft SharePoint 2010 Products -> SharePoint 2010 Central Administration / Click vào SharePoint Admin
22. Check job status / Kiểm tra trạng thái của các tính năng chạy theo lịch biểu
23. Browse to see Timer Job Feature A then click on it / Click on icon > cho đến khi thấy tính năng Timer Job Feature A, rồi click vào "Timer Job Feature A"
24. Can be set scheduled for Timer Job / Có thể thiết đặt thời gian biểu cho tính năng
Code for the article / Code cho bài viết này: TimerJobFeatureA
God bless us! Chúa chúc phúc chúng ta!
Thomas Trung Vo
